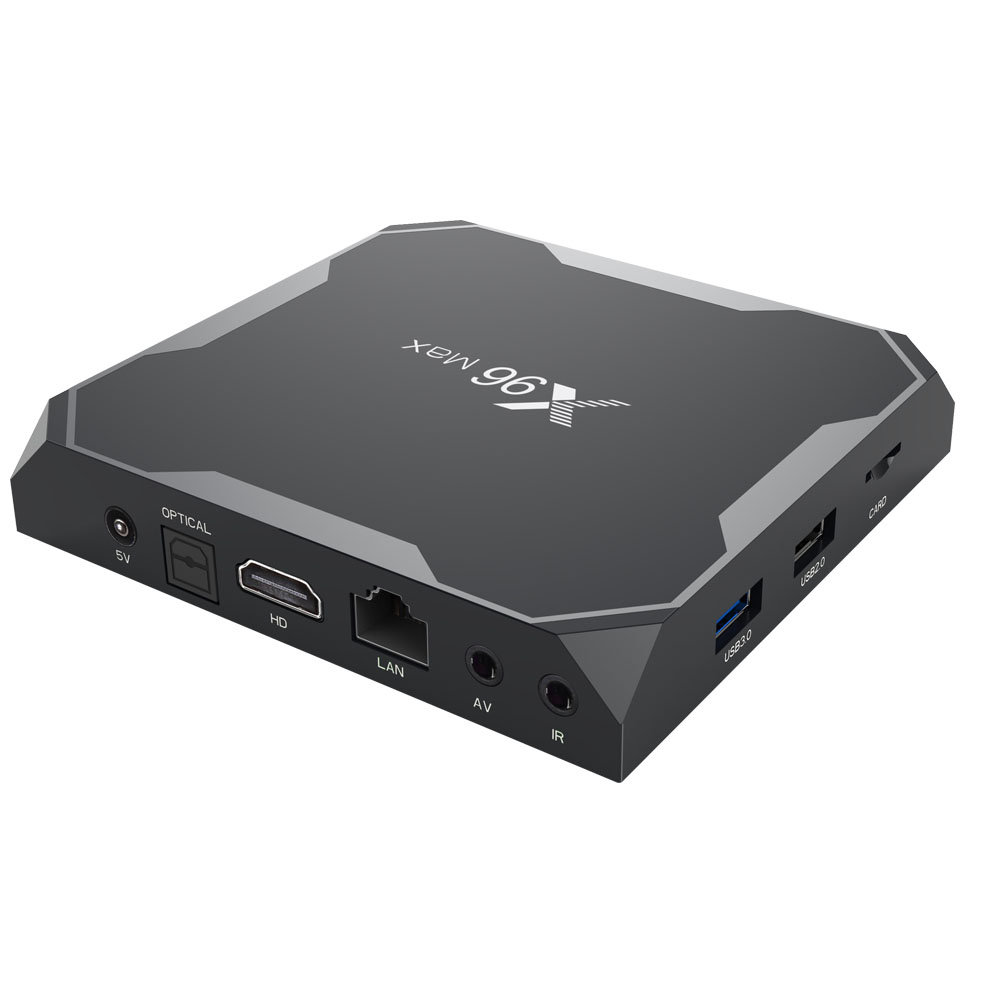

X96 Max Set Top Box

X96 Max (S905X2)
CPU	Amlogic S905X2 Quad Core ARM Cortex A53 @2GHz
GPU	ARM Dvalin MP2 GPU
Memory	LPDDR4: 4GB
Flash	eMMC：32GB(Option: 64GB )
WiFi	IEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G
Bluetooth	Bluetooth 4.x +HS; Support Voice Remote
Moudle	Plastic : Black Color
I/O	1*HDMI	HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output.
	1*AV OUT	480i/576i standard definition output
	2*USB	1* USB 3.0 ;1*USB 2.0
	1*IR Reciver	Remote Reciver Connect
	1*RJ45	Ethernet Interface;Support 10/100/1000M
	1*TF CARD	Support 4GB/8GB/16GB/32GB/64GB
Power	DC 5V/2A；LED indicator，Working ：Blue;
Software
OS	Android 8.1
Video	- Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders - Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps - Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding - Video/Picture Decoding - VP9 Profile-2 up to 4Kx2K@60fps - H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps - AVS2-P2 Profile up to 4Kx2K@60fps - H.264 AVC HP@L5.1 up to 4Kx2K@30fps - H.264 MVC up to 1080P@60fps - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) - WMV/VC-1 SP/MP/AP up to 1080P@60fps - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) - RealVideo 8/9/10 up to 1080P@60fps - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
Audio	Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image	HD JPEG、BMP、GIF、PNG、TIF
Language	English French German Spanish Italian etc multilateral languages
Appliactions
Online	Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps	Apps download freely form android market、amazon app store etc.
Medium	Local Media playback,Support HDD, U Disck ,TF Card .
Talk online	Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc
Others	Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard
Packing	Product dimension	10510520(MM)
	Qty per unit packing	1pc
	Unit packing: (LxWxH)	20514050(MM)
	Unit packing (G.W.)	0.397KG
	Qty per export carton	20PCS
	Export carton (WxHxL)	420270305（mm）
	Export carton (G.W.)	8.5KG
Accessories ：
1、HDMI cable *1
2、IR Remote *1
3、User Manual *1
4、Package box *1
5、Power adapter *1

X96 Max 机顶盒

CPU	Amlogic S905X2 Quad Core ARM Cortex A53 @2GHz
GPU	ARM Dvalin MP2 GPU
Memory	LPDDR4: 4GB
Flash	eMMC：32GB(Option: 64GB )
WiFi	IEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G
Bluetooth	Bluetooth 4.x +HS; Support Voice Remote
Moudle	Plastic : Black Color
