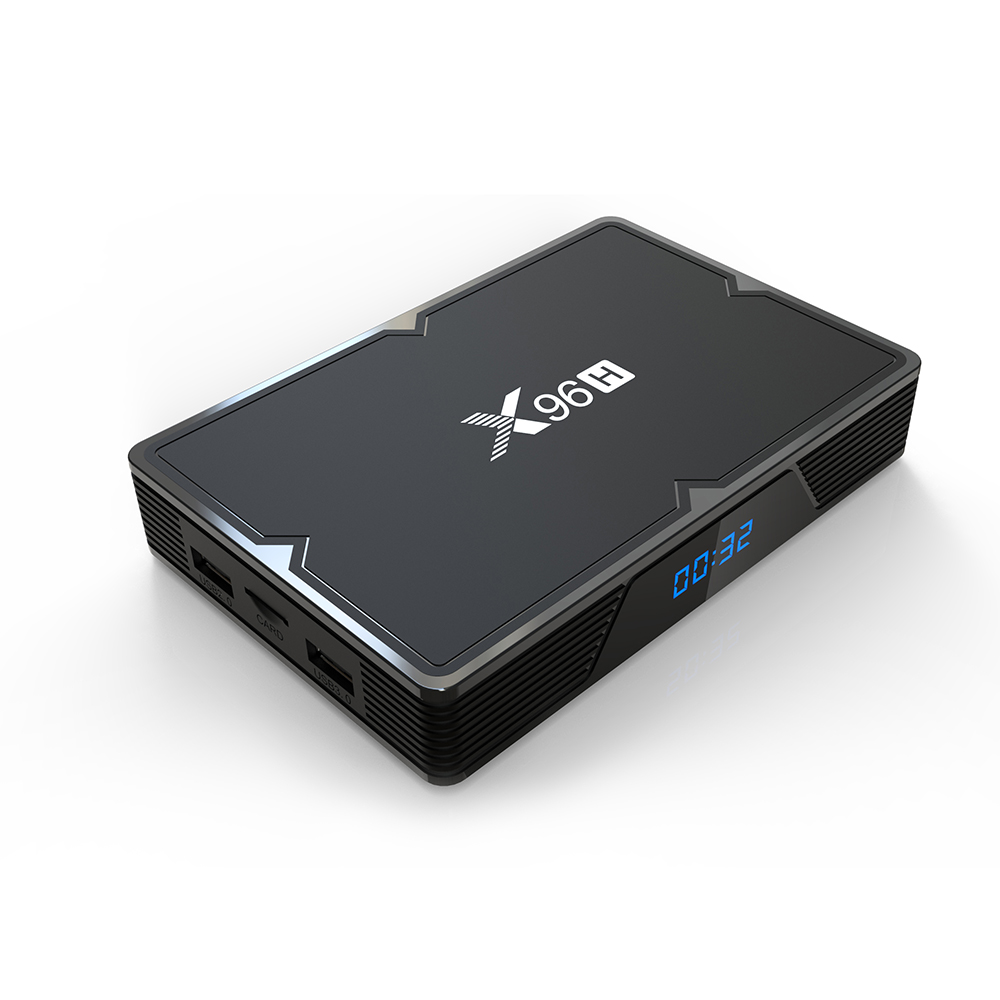

X96H

Features：

  • 6k 30hz decoding
    Support HDMI OUT, HDMI IN
    bluetooth：BT 4.1
    system：Android 9.0
    Audio: support AAC-LC/HEAAC/HE-AAC v2、AC3、AMR-NB、DTS、MP3、OGG、RA_COOK、WMA、WMA、LPCM/PCM/ADPCM、FLAIsoaudio playback
    Video: supportRM/RMVB、MPEG、 MKV、 AVI、 MP4、MOV、FLV、 H.263、H.264、H.265、VC-1、DivX、 Xvid、TS,RealVideo、VP6、VP8 And so on video file
    Language: Chinese, English, French, Japanese, Korean and other 24 languages
    Web: browse all video websites、Netflix、Hulu、Flixster,、Youtube etc
    Media: support local media playback, mobile hard disk, usb flash drive, SD card
    Communication: support network video call, MSN, FACEBOOK, TWITTER, QQ, etc
    Support email, office software, DLNA function, etc
    Wireless mouse, wireless keyboard, 2.4g flying mouse and remote control are supported


X96H (H603)

CPU H603 Quad-core 64-bit ARM Cortex™- A53
GPU High-performance multi-core GPU Mali T720
Memory DDR3: 4GB/2GB
Flash eMMC：32GB(Option: 16GB/64GB )
WiFi IEEE 802.11 b/g/n/ac ;  2.4G / 5G 2*2    mimo
Bluetooth Bluetooth 4.1 +HS;   Support Voice Remote
Moudle Plastic : Black  Color

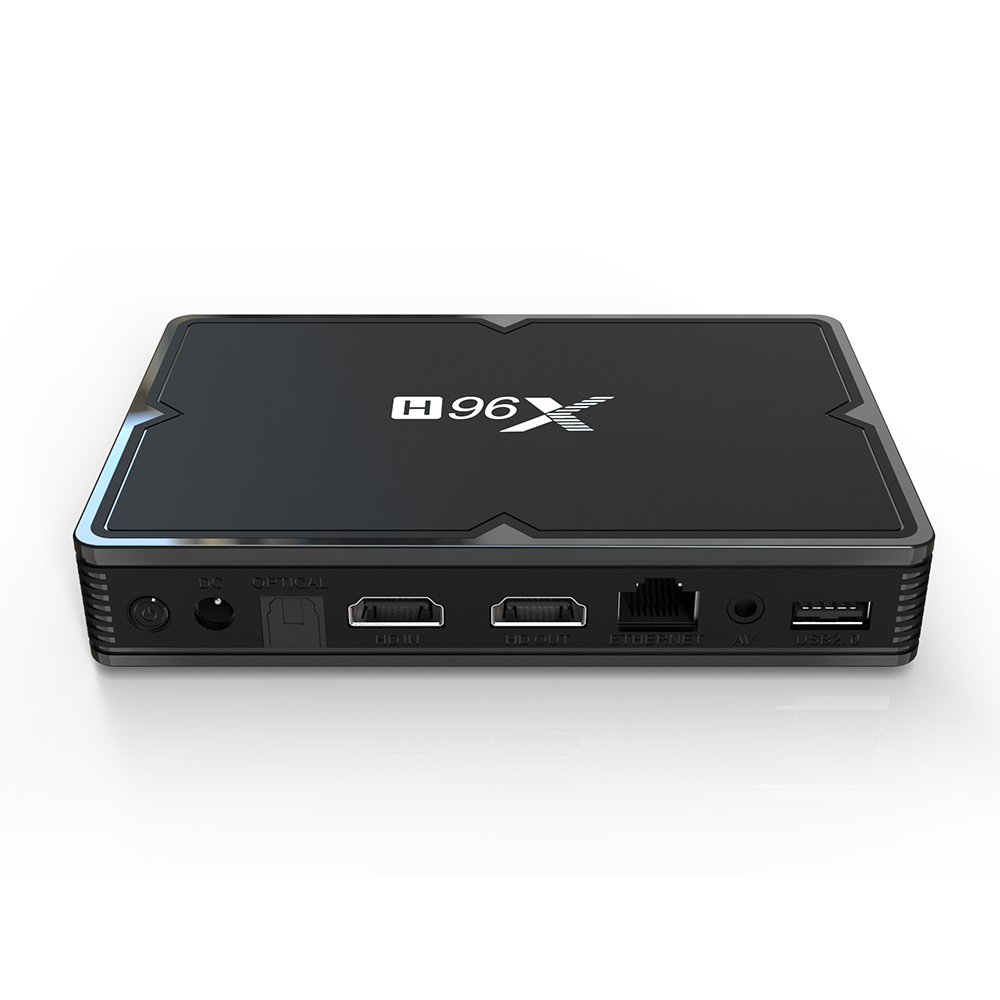

I/O 1*HDMI OUT One HDMI 2.0a TX
1*HDMI IN One HDMI 1.4 TX input
1*AV OUT 486i/576i standard definition output
3*USB 1* USB 3.0  ;1*USB 2.0;1*USB2.0 OTG
1*RJ45 Ethernet Interface;Support 10/100M
1*OPTICAL One Optical  output
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2A；LED indicator. Working,blue
Software
OS Android 9.0
Video Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders
 Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
 Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
 Video/Picture Decoding
- H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
-  H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps
-  VP9，Profile 0/2, 4K@30fps
- VP6/VP8, 1080P@60fps
- MPEG1/MPEG2 SP@ML, MP@HL, 1080P@60fps
-  MPEG4 SP@level 0~3, ASP@level 0~5, GMC, short header format, 1080P@60fps
- AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps
- VC-1 SP@ML, MP@HL, AP@level 0~3, 1080P@60fps
- Supports Frame Buffer Compression（FBC）
- Output pixel format configurable,YUV420/YV12/NV12/...
- Real-time image decoding- Maximum resolution up to 65536 x 65536
- Integrated JPEG hardware decoder
- Configurable output pixel format- YUV420/YV12/NV12/...
Audio • MPEG-1，MPEG-2（L1/L2/L3），MP3，AAC-LC，HE AAC V1/V2，APE，FLAC，OGG，AMR-NB， AMR-WB，G.711(u/a) decoding
• G.711(u/a), AMR-NB, AMR-WB, AAC-LC encoding
• 3~5m far field sound acquisition, supports speech enhancement, acoustic echo cancellation  and direction of speaker estimation.
• Virtual surround sound
Image HD JPEG、BMP、GIF、PNG、TIF
Language English French German Spanish Italian etc multilateral languages
Appliactions
Online Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps Apps download freely form android market、amazon app store etc.
Medium Local Media playback,Support HDD, U Disck ,TF Card .
Talk online Support  SKYPE video  call ,MSN , facebook ,twitter ,QQ,WeChat  etc
Others Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Accessories ：
1、HDMI cable  *1
2、IR Remote *1
3、User Manual *1
4、Package box  *1
5、Power adapter  *1


X96 H 机顶盒X96 H 机顶盒X96 H 机顶盒X96 H 机顶盒X96 H 机顶盒X96 H 机顶盒

CPU H603 Quad-core 64-bit ARM Cortex™- A53
GPU High-performance multi-core GPU Mali T720
Memory DDR3: 4GB/2GB
Flash eMMC：32GB(Option: 16GB/64GB )
WiFi IEEE 802.11 b/g/n/ac ; 2.4G / 5G 2*2 mimo
Bluetooth Bluetooth 4.1 +HS; Support Voice Remote
