产品特点:

  • 蓝牙:BT 4.2
    系统:Android 9.0
    音频:支持AAC-LC/HEAAC/HE-AAC v2、AC3、AMR-NB、DTS、MP3、OGG、RA_COOK、WMA、WMA、LPCM/PCM/ADPCM、FLA等音频播放
    视频:支持RM/RMVB、MPEG、 MKV、 AVI、 MP4、MOV、FLV、 H.263、H.264、H.265、VC-1、DivX、 Xvid、TS,RealVideo、VP6、VP8 等视频文件
    语言:中文、英语、法语、日语、韩语等24种语言
    网络: 可浏览所有的的视频网站、Netflix、Hulu、Flixster,、Youtube等
    媒体:支持本地媒体播放、移动硬盘、U 盘、 SD卡
    通讯:支持网络视频通话、MSN、FACEBOOK、TWITTER、QQ等
    支持电邮、办公软件、DLNA功能等
    支持连接无线鼠标、无线键盘、2.4G飞鼠、遥控器

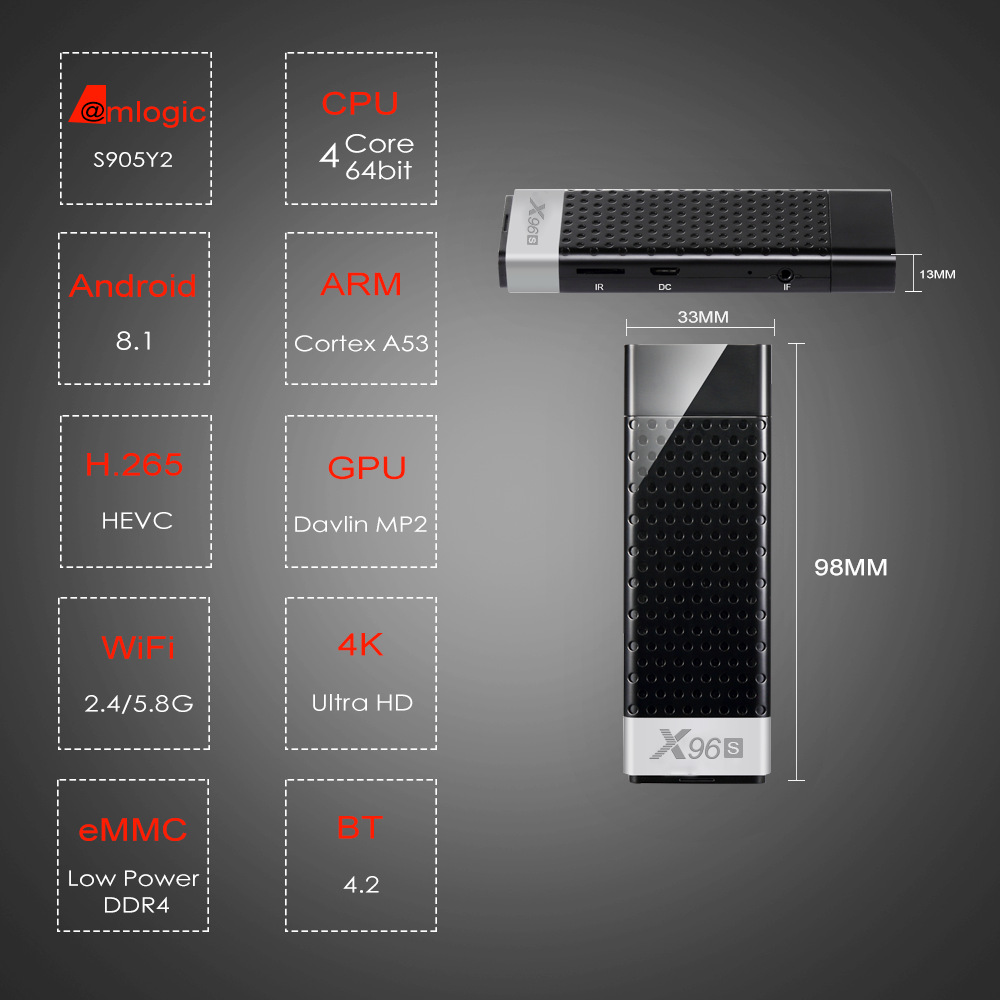

X96 S(S905Y2)

CPU Amlogic S905Y2 Quad Core ARM Cortex A53 @2GHz
GPU ARM Dvalin MP2 GPU
Memory LowPower DDR4:4GB(Option: 1GB / 2GB / 3GB)
Flash eMMC:32GB(Option: 8GB / 16GB / 64GB )
WiFi IEEE 802.11 a/b/g/n/ac ;  2.4G / 5.8G
Bluetooth Bluetooth 4.2
Moudle Plastic : Black  Color
I/O 1*HDMI HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output.
1*USB,1*Micro USB 1* USB 3.0  ;1*Micro USB 2.0
1*IR Remote Reciver Connect
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/1A;LED indicator,Working:Blue;
Software
OS Android 9.0
Video Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
Video/Picture Decoding
-  VP9 Profile-2 up to 4Kx2K@60fps
-  H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
-  AVS2-P2 Profile up to 4Kx2K@60fps
-  H.264 AVC HP@L5.1 up to 4Kx2K@30fps
-  H.264 MVC up to 1080P@60fps
-  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
-  WMV/VC-1 SP/MP/AP up to 1080P@60fps
-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
-  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
-  RealVideo 8/9/10 up to 1080P@60fps
-  Multiple language and multiple format sub-title video support
-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
-  Supports JPEG thumbnail, scaling, rotation and transition effects
-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image HD JPEG、BMP、GIF、PNG、TIF
Language English French German Spanish Italian etc multilateral languages
Appliactions
Online Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps Apps download freely form android market、amazon app store etc.
Medium Local Media playback,Support HDD, U Disck ,TF Card .
Talk online Support  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
Others Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing Product dimension 98*33*13(MM)
Qty per unit packing 1pc
Unit packing: (LxWxH) 153*102*56(MM)
Unit packing (G.W.) 0.237KG
Qty per export carton 30PCS
Export carton (WxHxL) 665*316*167(mm)
Export carton (G.W.) 8.0KG
Accessories:
1,HDMI cable  *1
2,IR Line *1
3,IR Remote *1
4,Micro USB Line  *1
5,USB adapter  *1
6,User Manual *1


X96 S 机顶盒X96 S 机顶盒X96 S 机顶盒X96 S 机顶盒X96 S 机顶盒X96 S 机顶盒

CPU Amlogic S905Y2 Quad Core ARM Cortex A53 @2GHz
GPU ARM Dvalin MP2 GPU
Memory LowPower DDR4: 4GB(Option: 1GB / 2GB / 3GB )
Flash eMMC32GB(Option: 8GB / 16GB / 64GB )
WiFi IEEE 802.11 a/b/g/n/ac ;  2.4G / 5.8G
Bluetooth Bluetooth 4.2
Moudle Plastic : Black  Color
