产品特点:

  • CPU:S922X
    Architecture:Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU
    3D Graphics Processing Unit: GPU ARM Mali-G52MP6(6EE) GPU
    Graphical Program:OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support
    RAM:4GB (LPDDR4)
    ROM:32GB (16GB/64GB/128GB optional)
    Operating system:OS Version Android 9.0
    Language:Multi-Language
    Wi-Fi:IEEE 802.11 a/ b / g / n / ac
    Frequency:2.4G and 5G
    Bluetooth:BT 4.X
    Charge:DC IN(12V/2A)

X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒X96X9机顶盒

Product Model X96 X9 Project Status M.P
CPU Chipset S922X
Architecture Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU
3D Graphics Processing Unit GPU ARM Mali-G52MP6(6EE) GPU

Graphical Program
OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support
RAM Capacity 4GB (LPDDR4)
ROM Capacity 32GB (16GB/64GB/128GB optional)
External storage USB Storage Devices Supported
Micro SD card Supported
Software
Operating system OS Version Android 9.0
Language Multi-Language
Multimedia Video Support 8K@30fps Video decoding
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso,*.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Image Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate JPEG image encoding H.265/H.264 video encoding up to 1080P@60fps with low latency
Network service
Wi-Fi Type Support WiFi IEEE 802.11 a/ b / g / n / ac
Frequency Support 2.4G and 5G
Bluetooth Bluetooth Support BT 4.X

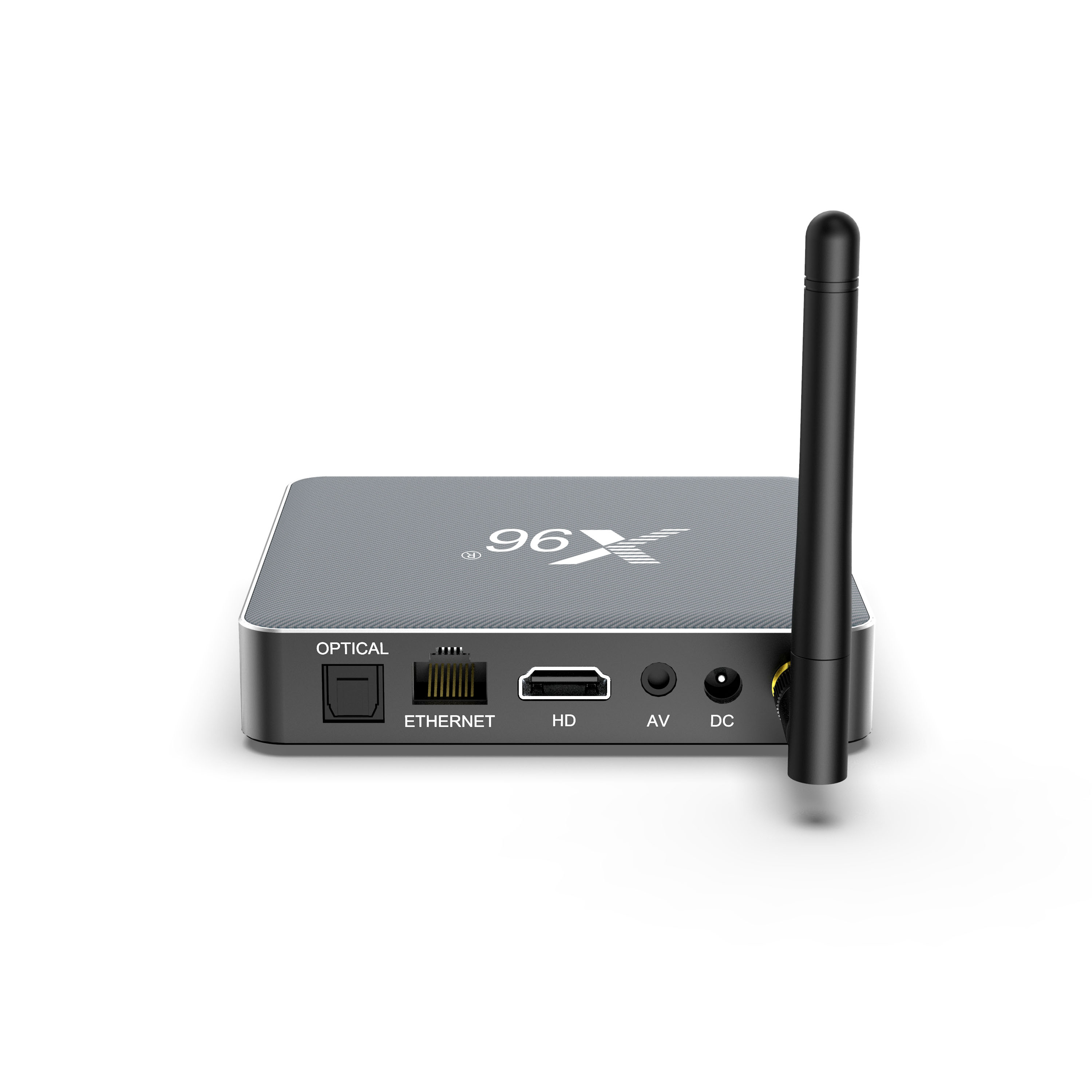

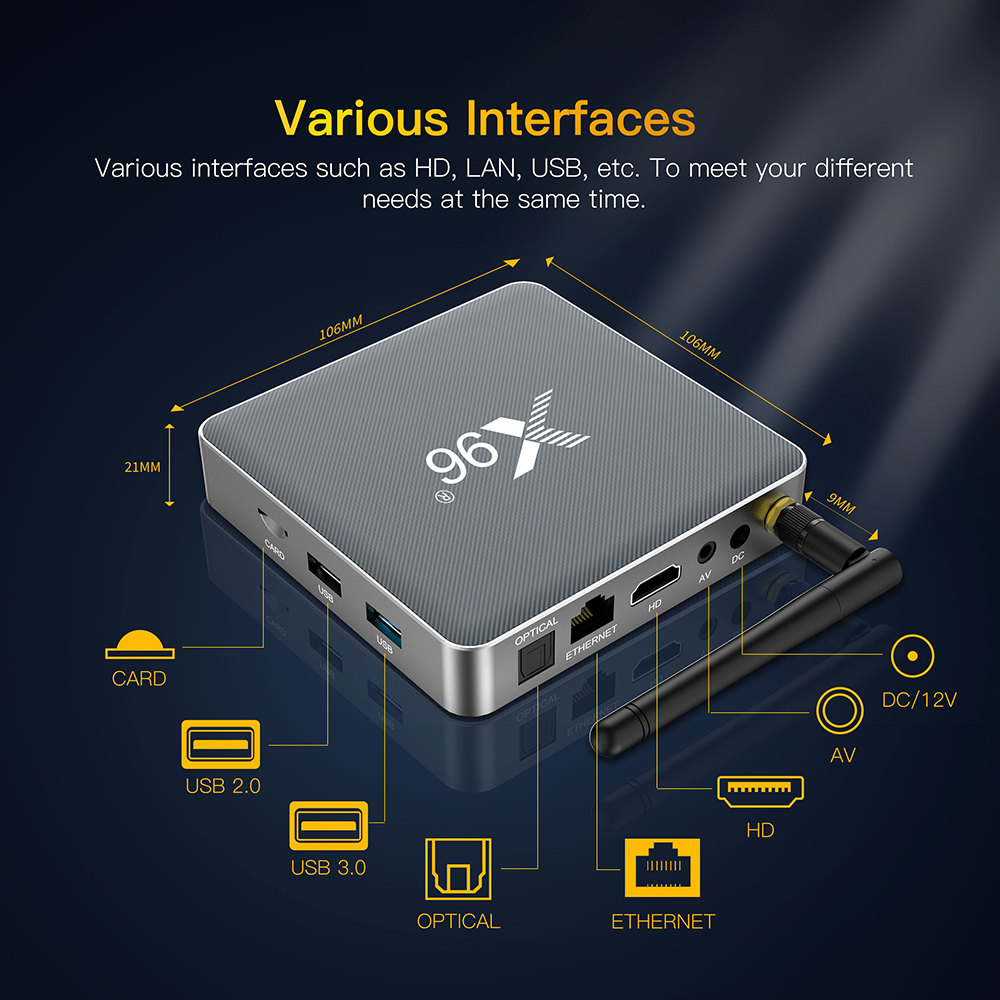

Interface
Charge DC connector DC IN(12V/2A)
Video output HDMI HDMI 2.1  4K*2K@60 max resolution  output
CVBS Support  PAL/NTSC
Audio / 1* SPDIF
Micro SD External memory 1* TF card
USB port External memory 1* USB3.0
1* USB2.0
Ethernet Ethernet 1000M(100M optional)
Others RTC optional
Body Material ABS,cloth, Aluminum alloy
Color Ash
Size 106*106*21(mm)
Weight 0.194Kg
Cerifications(For Unit)
Standard CE /
RoHS /
Others Optional /
Package contents Shipping Info
User manual *1 Gift Box Dimension(mm) 205*140*50(mm)
Gift Box *1 Carton Size(mm) 420*270*305 (mm)
Remote control *1 Qty Per Carton(pcs) 20
HD external cable *1 Gift Box.G.W(gs) 0.474KG
Power adapter *1 Export carton (G.W.)(kgs) 10.48KG
CPU Chipset S922X
Architecture Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU
3D Graphics Processing Unit GPU ARM Mali-G52MP6(6EE) GPU

Graphical Program
OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support
RAM Capacity 4GB (LPDDR4)
ROM Capacity 32GB (16GB/64GB/128GB optional)
Operating system OS Version Android 9.0
Language Multi-Language
Wi-Fi Type Support WiFi IEEE 802.11 a/ b / g / n / ac
Frequency Support 2.4G and 5G
Bluetooth Bluetooth Support BT 4.X
Charge DC connector DC IN(12V/2A)
Video output HDMI HDMI 2.1  4K*2K@60 max resolution  output
CVBS Support  PAL/NTSC
Audio / 1* SPDIF
Micro SD External memory 1* TF card
USB port External memory 1* USB3.0
1* USB2.0
Ethernet Ethernet 1000M(100M optional)
Others RTC optional
